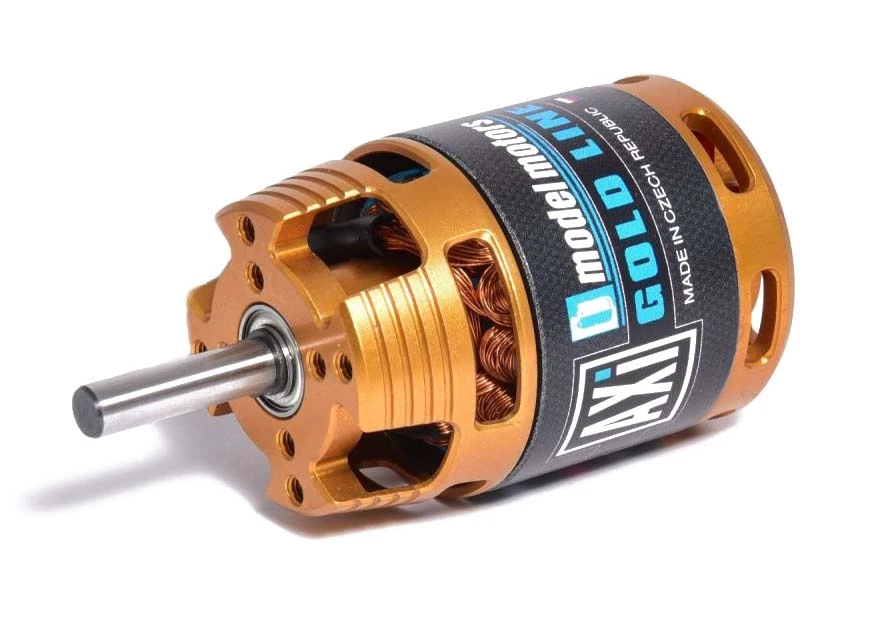

Axi 2820/14 V2 Long 860 RPM/V 158g Outrunner

High torque brushless motor with rotating drum and high power neodym magnets suitable for gliders and hotliners up to 2400g weight. The hardened steel 5mm diameter shaft and is supported by four ball bearings.

No. of cells 3-4 Li-Poly
Kv 860 RPM/V
Max. efficiency 88%
Max. efficiency current 15-30 A
No load current 1,6 A
Current capacity 37A/60s
Internal Resistance 33 mohm
Dimensions (Ø x L) 35×52 mm
Shaft diameter 5 mm
Weight 158 g
Max. Power 520 W
