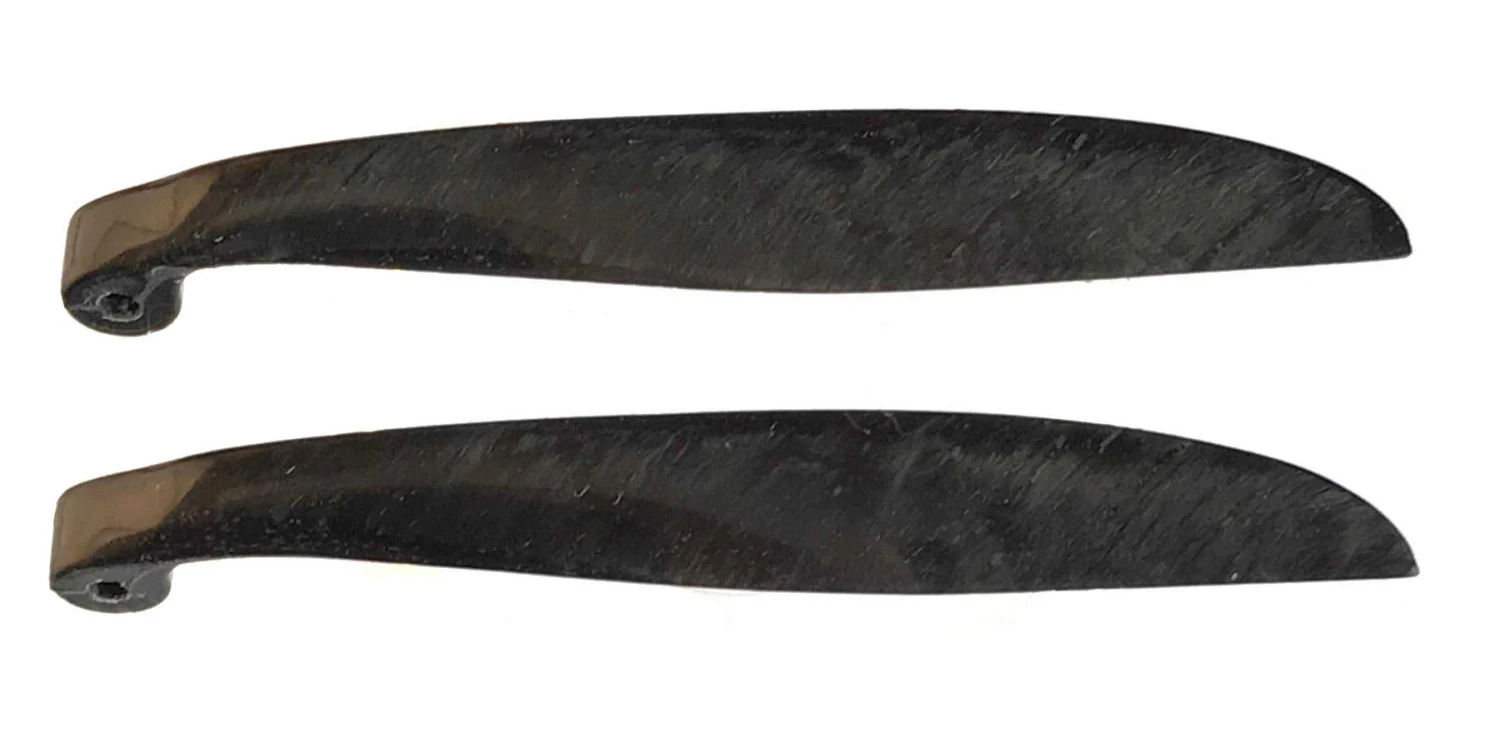

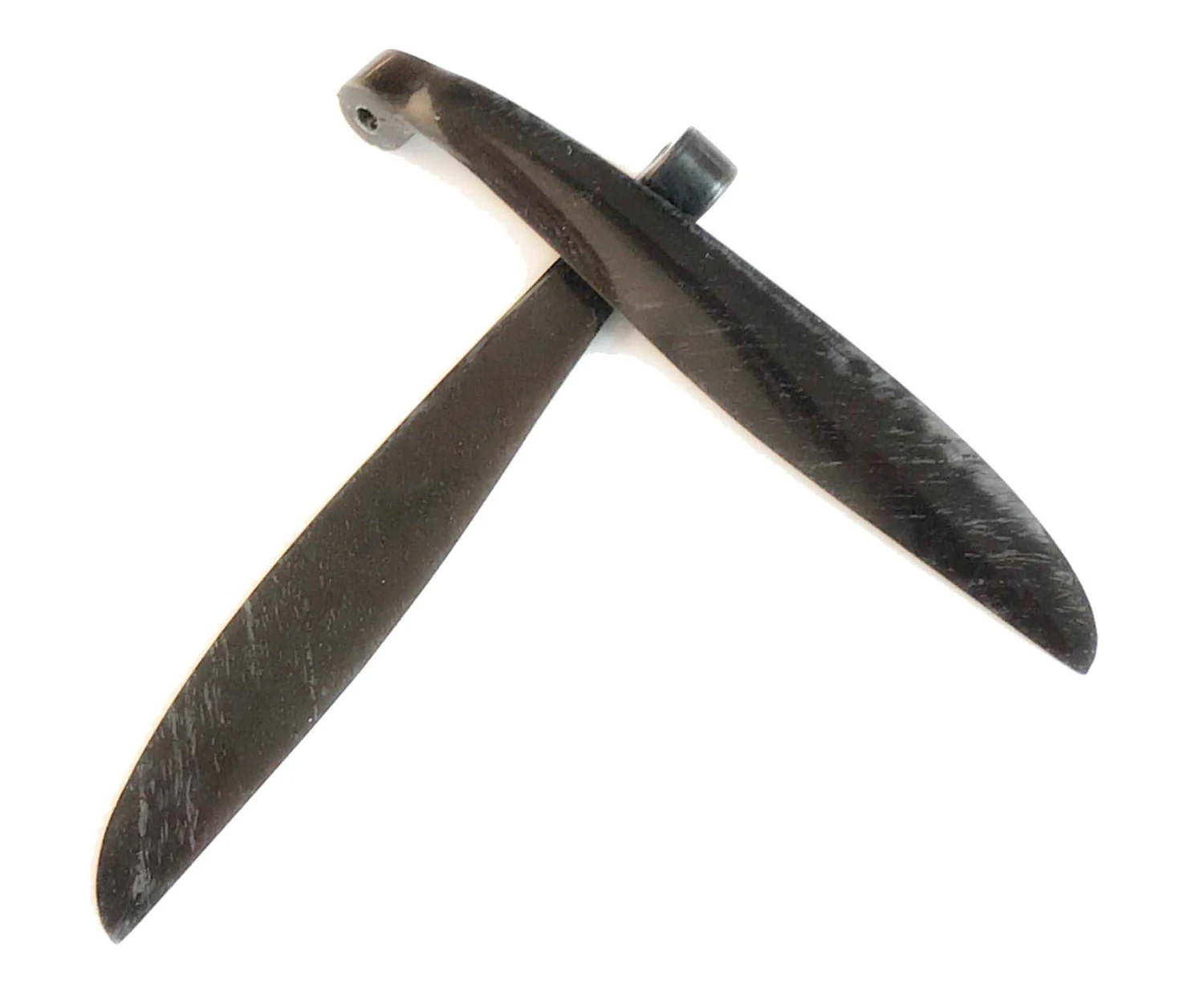

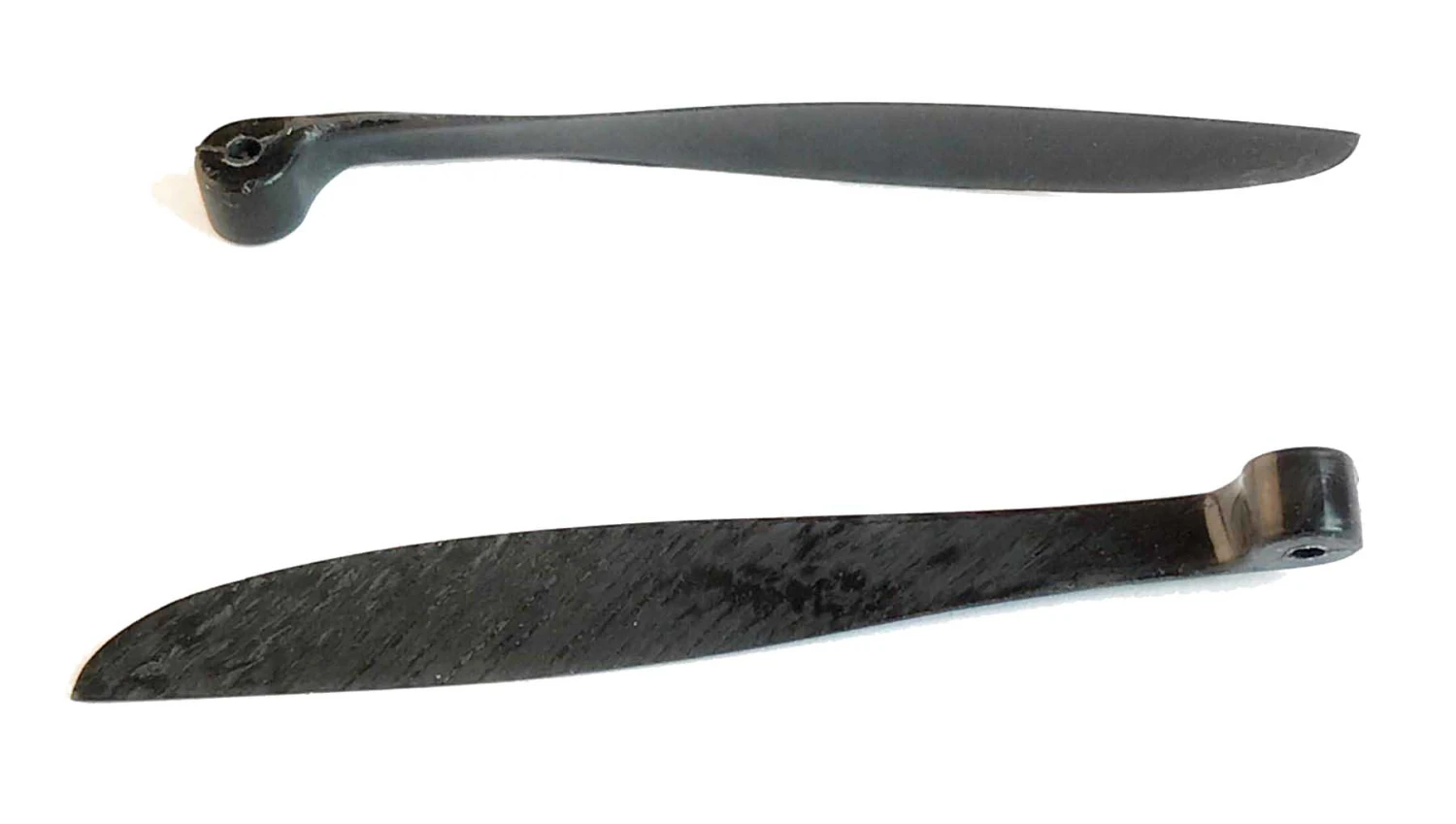

CN 6×4 Folding Prop Blades (2mm Hinge Pin)

A pair of CN Models 6×4 prop blades suitable for the F5K and other small electric gliders. These have a flatter high aspect ratio design and should fold closer to the fuselage, reducing glide drag.

These blades require smaller spinner/hub assemblies with 2mm diameter hinge pins. Note this product consists of two carbon propeller blades only. The central spinner/yoke assembly is not included.

CM 6×4 Folding Propeller Blade Specifications
Prop diameter	15 cm	6 in
Prop pitch	10 cm	4 in
Weight of 2 blades	1.6 g	0.06 oz
Width of blade root	5.0 mm	0.197 in
Hinge pin hole dia	2.0 mm	0.079 in
Max power	200 W
