Integrated Drive System Foam For KST X10, X10 Mini, DS125, DS135

This updated frame has a larger gluing area and fits the X10, X10 Mini as well as the older KST DS125 and DS135 servos.

The Integrated Drive System Foam for KST X10, X10 Mini, DS125, & DS135 servos is a beautifully engineered external bearing servo frame matched to a custom servo horn and supplied with a set of ultra-rigid pushrods for connecting the servo to flaps and ailerons. The Integrated Drive System Foam is the latest design of Servorahmen IDS systems, and is designed to fit easily in solid core foam wings.

An Integrated Drive System or IDS is a largely or completely internal linkage between the servo and control surface. It is different from a normal wire based linkage in using much stiffer components, resulting in a more rigidly connected control surface, with much less compliance. Also IDS linkages use much shorter servo arm and control surface horn lengths. This allows the linkage to be enclosed in the wing.

These frames and IDS linkages speed-up servo installation, keep the servo secure and rigidly mounted, and also allow easy removal for maintenance or replacement. The external bearing reduces side load at the servo output arm, reducing compliance and extending the life of the servo. The external bearing and the special rigid IDS pushrod reduces any free play, increasing the stiffness of the control surface, improving control and avoiding flutter problems.

The connection between the servo and control surface is made via a ready-made hard plastic pushrod, so no cutting or gluing is required, making for a quicker and more repeatable installation. 12 of these mono pushrods are supplied in each kit, varying in length between 48 mm and 81 mm, each approx 3 mm longer than the next. These new IDS sets are labelled “Mono” as the pushrod is a monolithic component, not an assembly of parts that can come apart.

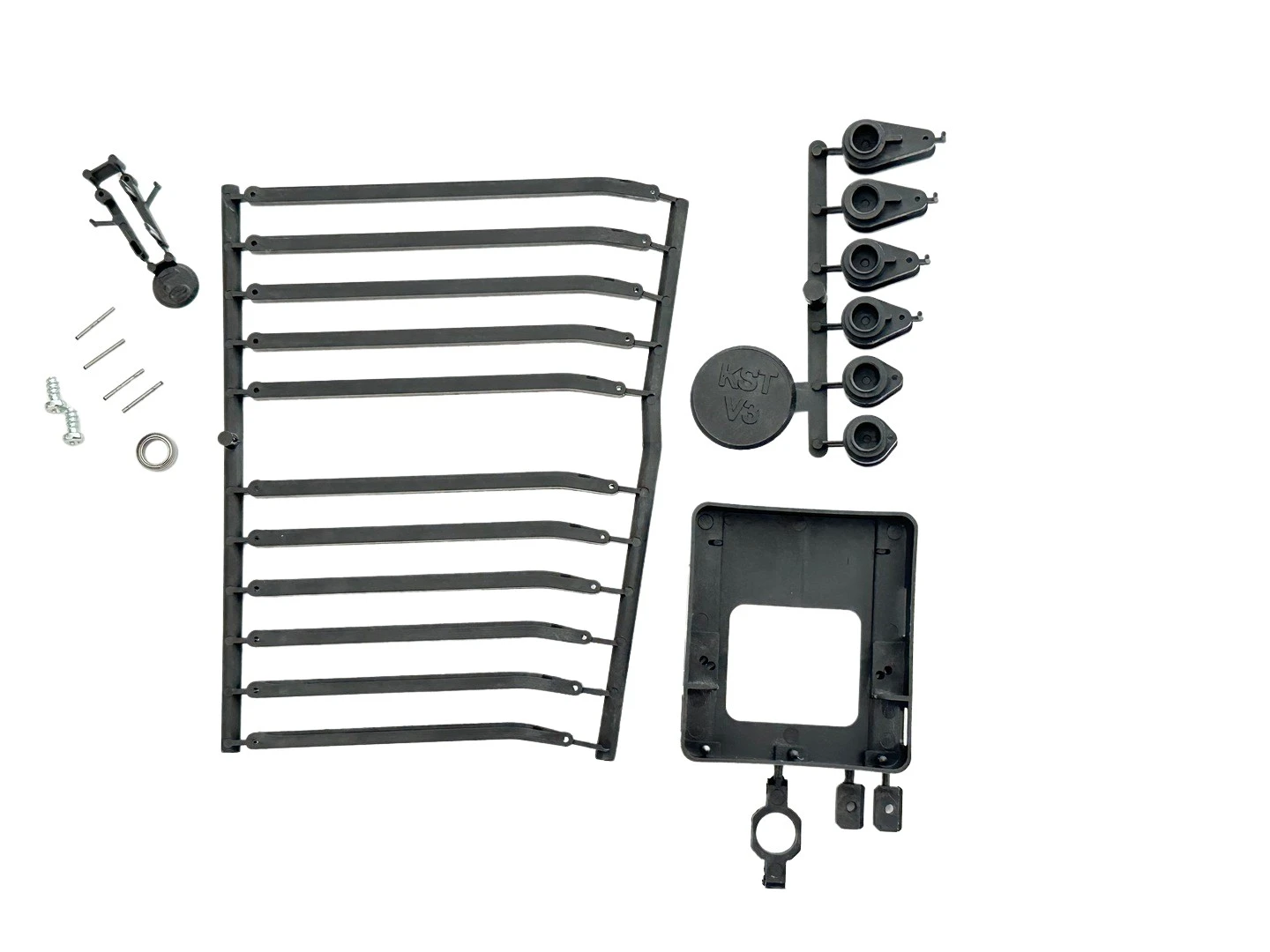

Parts supplied in this Foam IDS set:

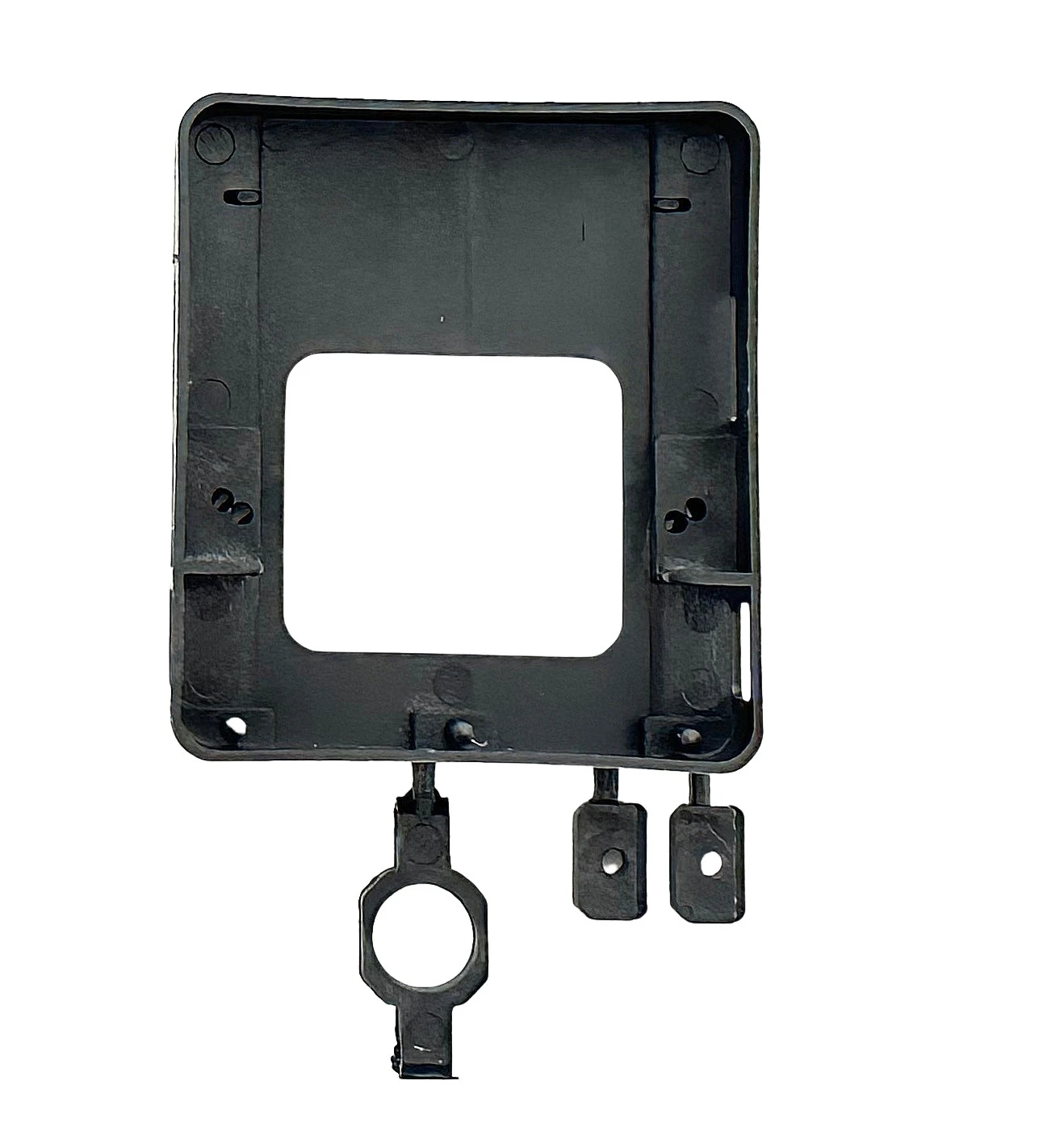

1 servo frame for foam wings, cut out size 45 mm x 50 mm
1 control surface horn
1 ball bearing
12 plastic IDS pushrods – range between 48 mm and 81 mm length
4 servo arms of different lengths
2 servo mounting screws
4 steel bearing shafts (2 are spares)

Sold singly. Add one to the basket for mounting and connecting one servo. The previous type of IDS sets with pushrods made from an aluminium tube are discontinued and replaced by this new IDS/Mono design.

No official installation guide is available but Piere Rondel has posted this excellent Servorahmen IDS Installation Guide. Also this Horn Installation Drawing is very useful.
