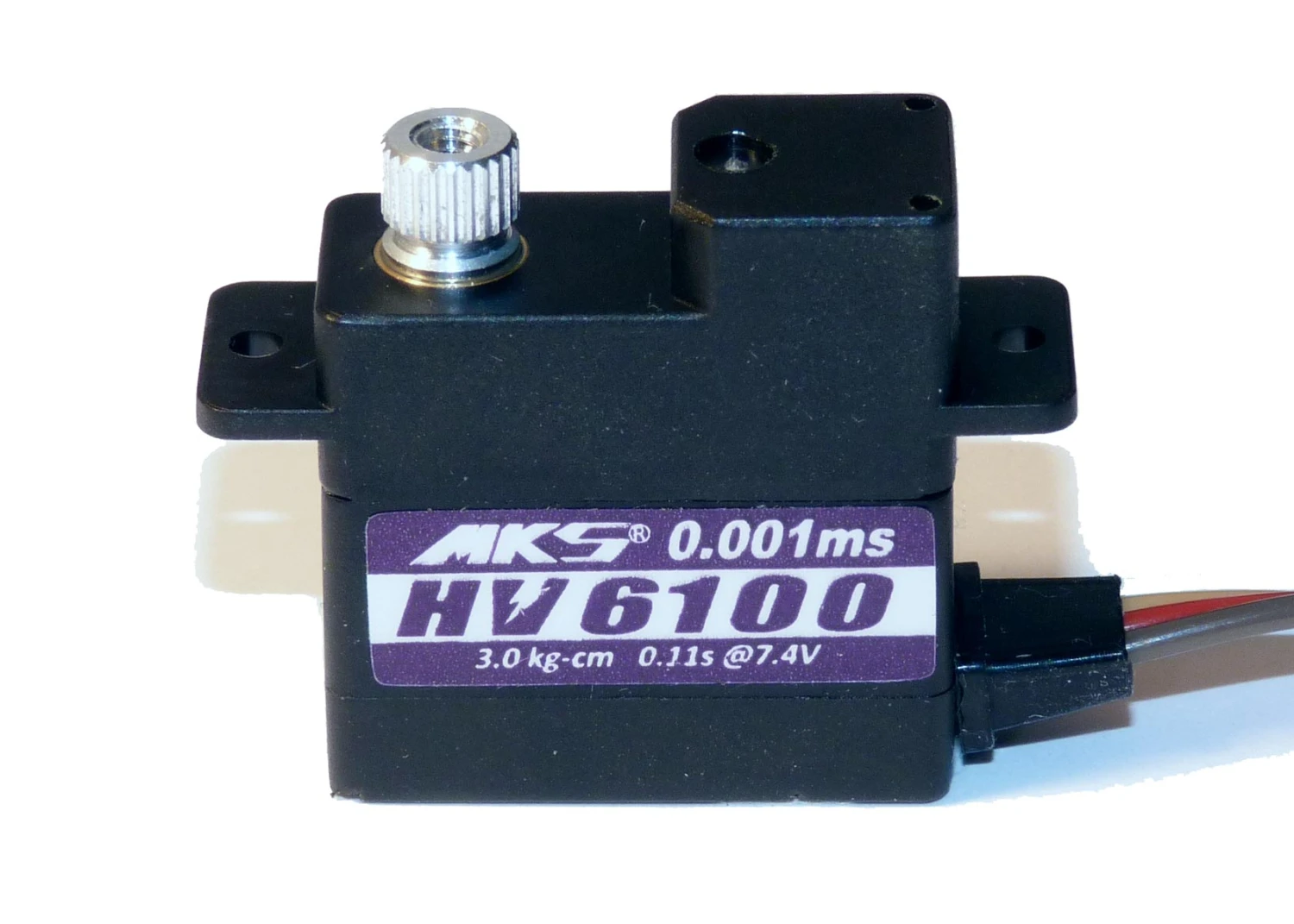

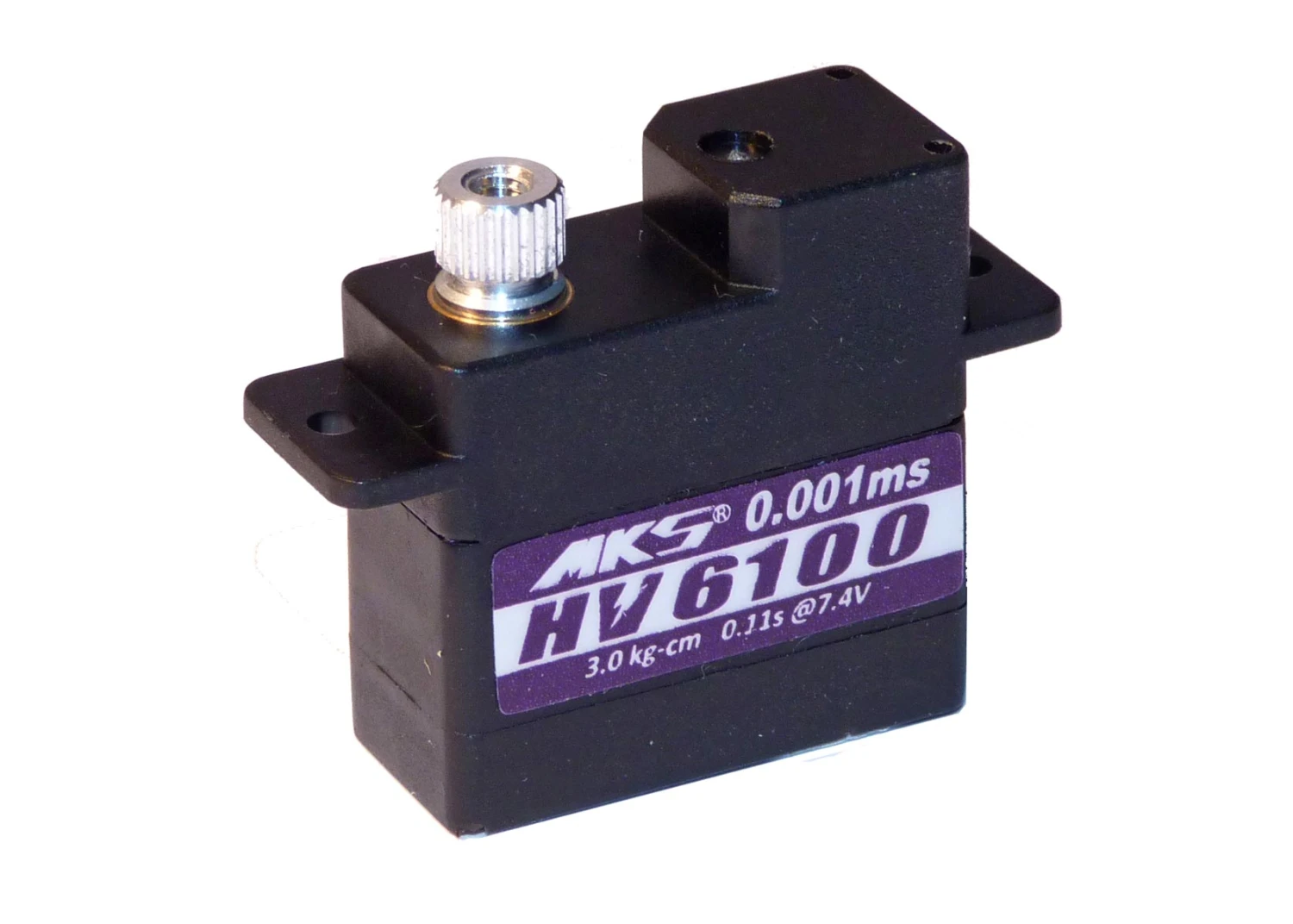

MKS HV6100 Servo – 3.4Kg.cm 0.10s 9.8g 10mm

The MKS HV6100 is a high voltage version of the acclaimed DS6100. It is specially optimised for glider fliers, with excellent torque, precision and a very low deadband. On a 2S LiPo battery it has higher torque and speed than the DS6100. It is a very high torque thin 10g servo suitable for many wing and fuselage applications. It has more torque and a better geartrain than all other high voltage servos of this size and price range.

At only 10mm thick this superb wing-servo can easily fit in thin wings, but with a low height of 23.5mm it can also fit in DLG and other small fuselages. With good 3.4 kg.cm torque and a blistering 0.10s/60° speed it is excellent for flaps, ailerons, elevator and rudder on many high performance gliders, DLGs, electric gliders, and faster sport slopers.

MKS HV6100 Servo Specifications

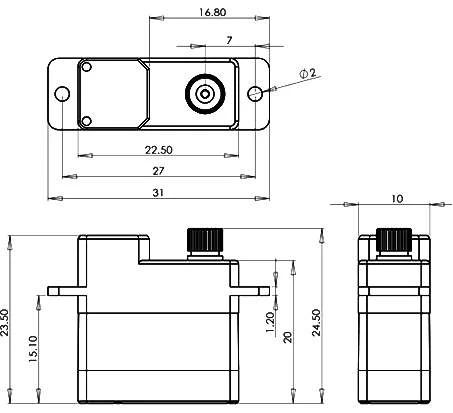

Body dimensions	22.5 mm wide x 10.0 mm thick x 23.5 mm high	0.89″ wide x 0.39″ thick x 0.93″ high
Max dimensions	31.0 mm wide x 10.0 mm thick x 24.5 mm high	1.22″ wide x 0.39″ thick x 0.96″ high
Stall torque (6V)	2.6 Kg.cm	36 oz.in
Stall torque (7.4V)	3 Kg.cm	42 oz.in
Stall torque (8.2V)	3.4 Kg.cm	47 oz.in
Weight	9.8 g	0.35 oz
Lead length	18 cm	7.1 in
Operating speed (6V)	0.14 sec/60°
Operating speed (7.4V)	0.11 sec/60°
Operating speed (8.2V)	0.1 sec/60°
Operating voltage	6V to 8.2V
Operating temperature	-10 to 50 °C
Bearings	2 jewel bearings + 1 bronze bush
Gear material	Aluminium-magnesium alloy
Case material	Nylon
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Direct drive potentiometer

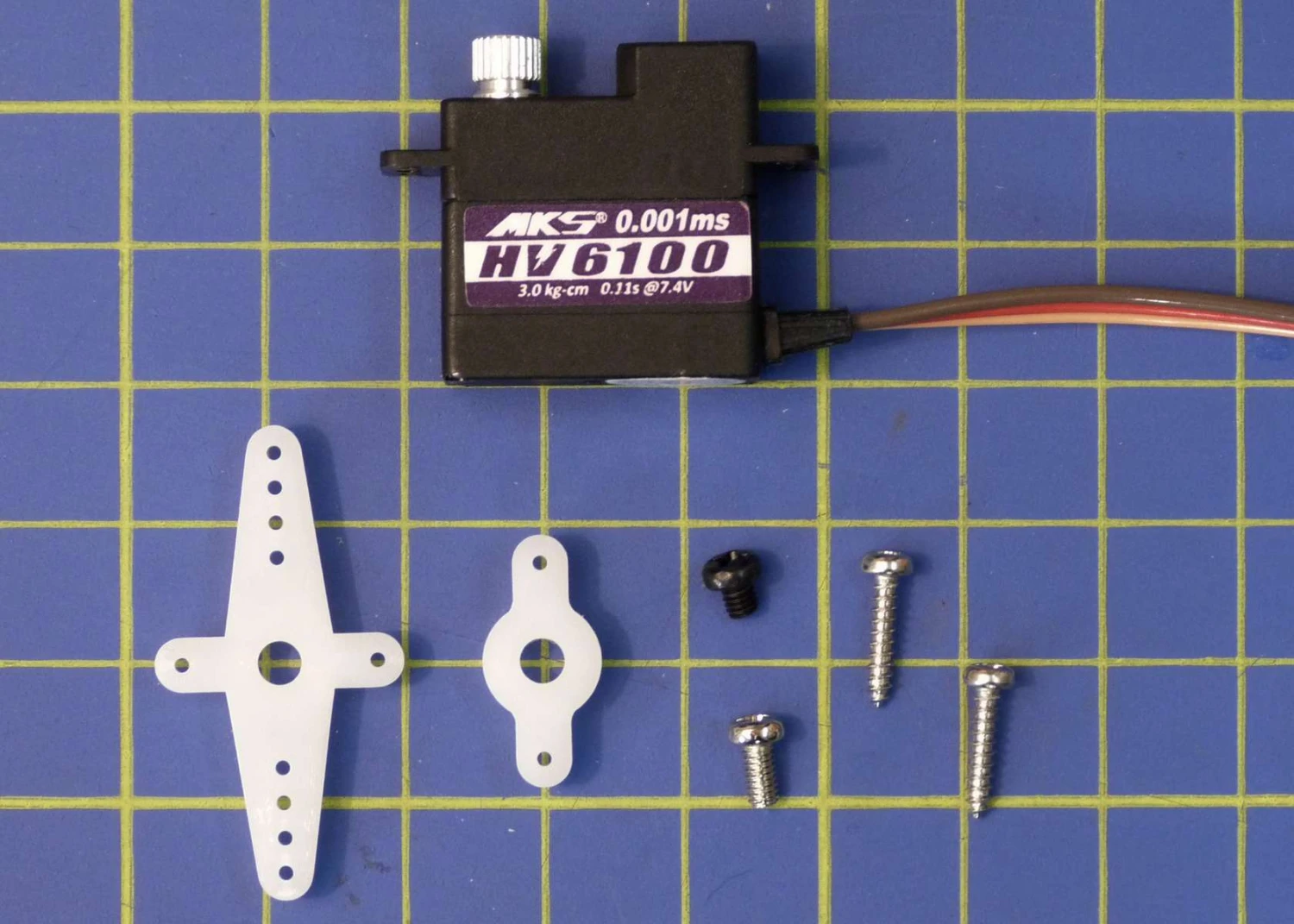

Supplied accessories	2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories	Ply frame for MKS DS6100, Frame with bearing for the MKS DS6100, Integrated Drive System/Mono for MKS DS6100, MKS Plastic Servo Output Arms, MKS Heavy Duty Plastic, MKS Short Metal Servo Output, MKS Long Metal Servo Output Arms, Replacement Gear Set for M
