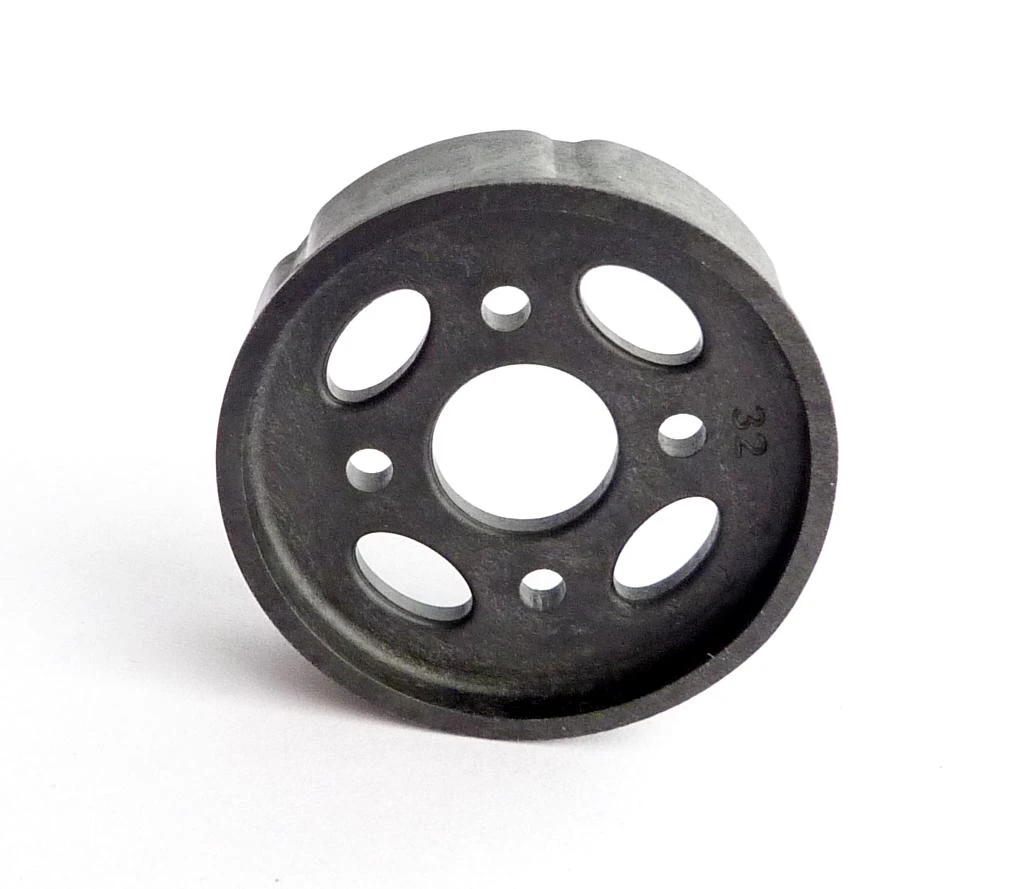

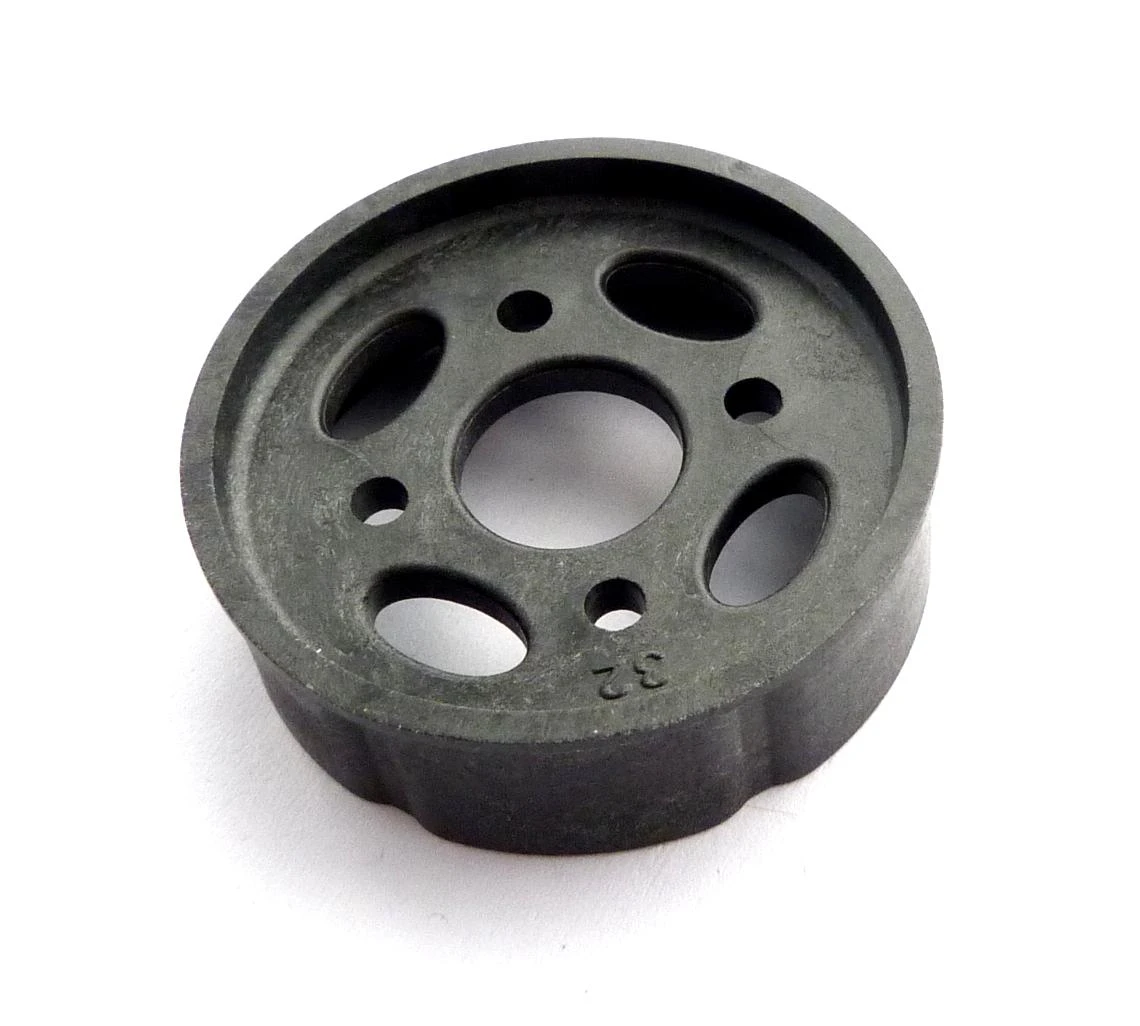

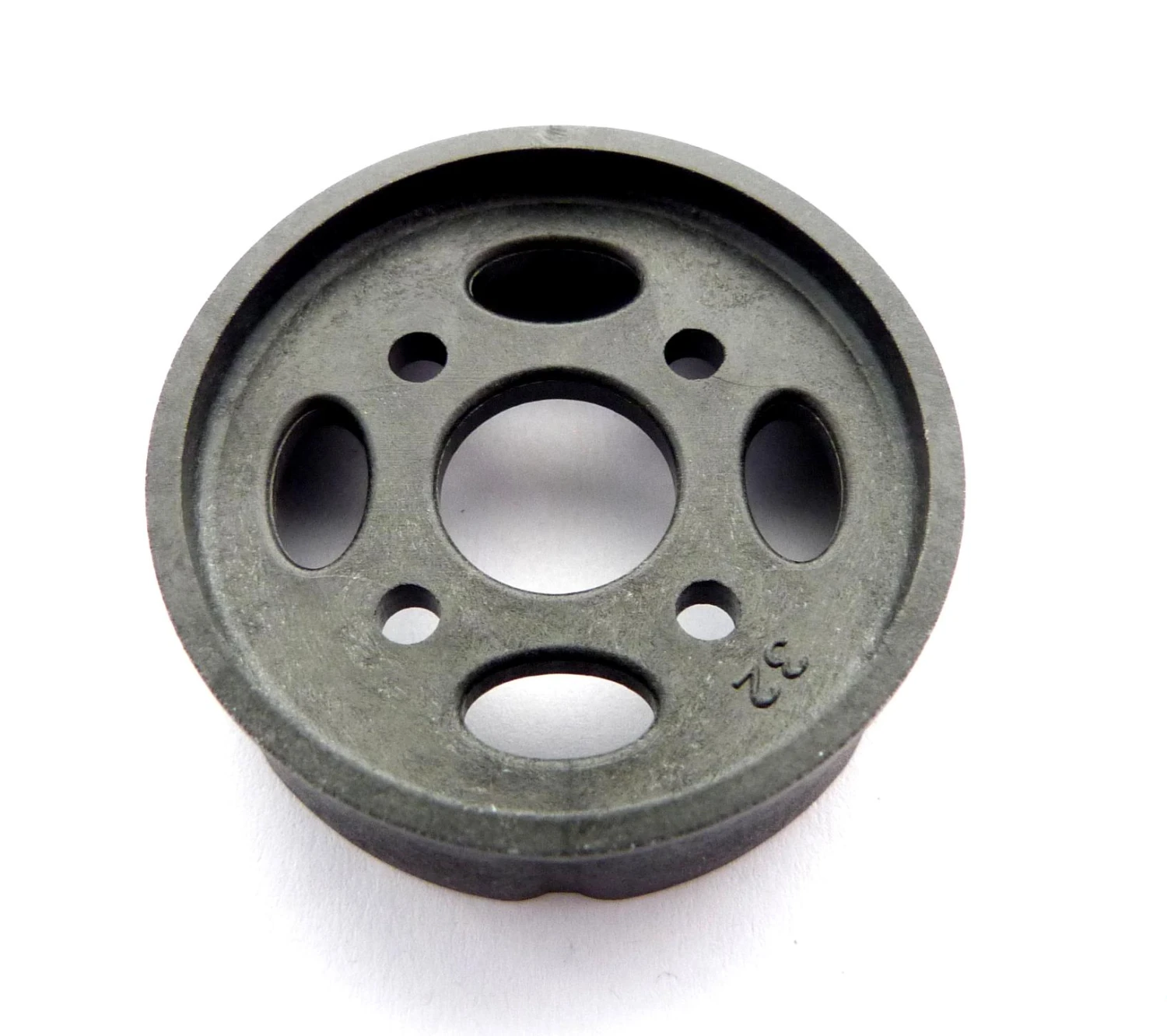

Powerline Turbo 10XX Plastic Firewall – 28mm

A hard plastic firewall to fit 28 mm outside diameter F5J electric glider fuselages. This is usually also the spinner diameter. Motor/gearbox mounting holes have been pre-drilled for the Powerline 10XX motors fitted with their 6.75:1 gearbox with 4 holes on a 17.5 mm circle.

Note the 27.2 mm dimension on these firewalls is the fuselage front inside diameter i.e. the outside size less 2*fuse wall thickness

Powerline 10XX 28 Plastic Firewall Specifications
Fuselage outside/spinner diameter	28 mm
Fuselage inside diameter	27.2 mm
Predrilled holes	4 holes on a 17.5 mm circle
Weight	1.7 g
