Very Large Shrouded Servo Cover With Bulge (2)

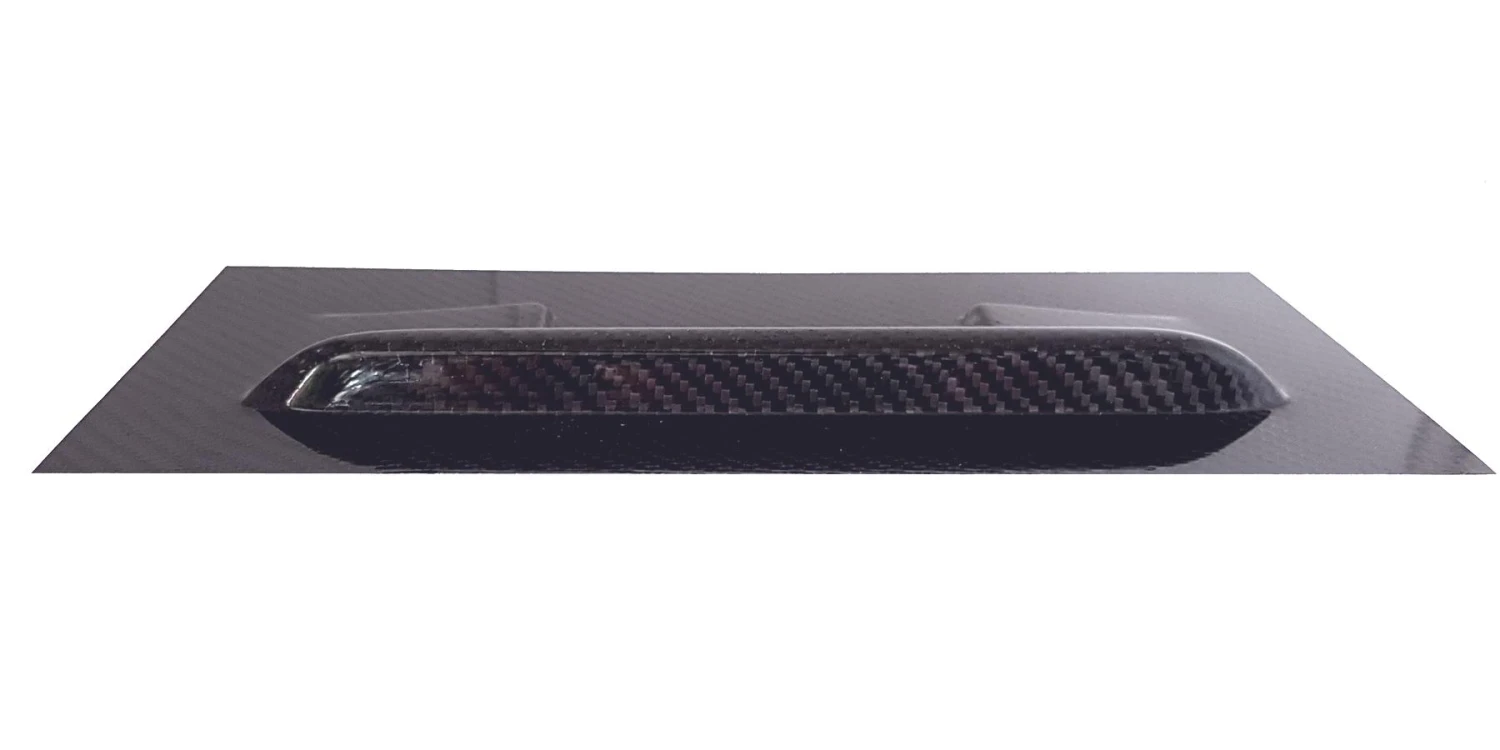

These large molded wing servo covers are light, low drag, and look good. They are molded with a larger bulge to allow thicker servos to be used. The bulge is approx 4 mm deep and allows thicker servos to be used.

The large shroud covers the servo output arm, clevis, and the control rod. This reduces the turbulence and improves performance measurably.

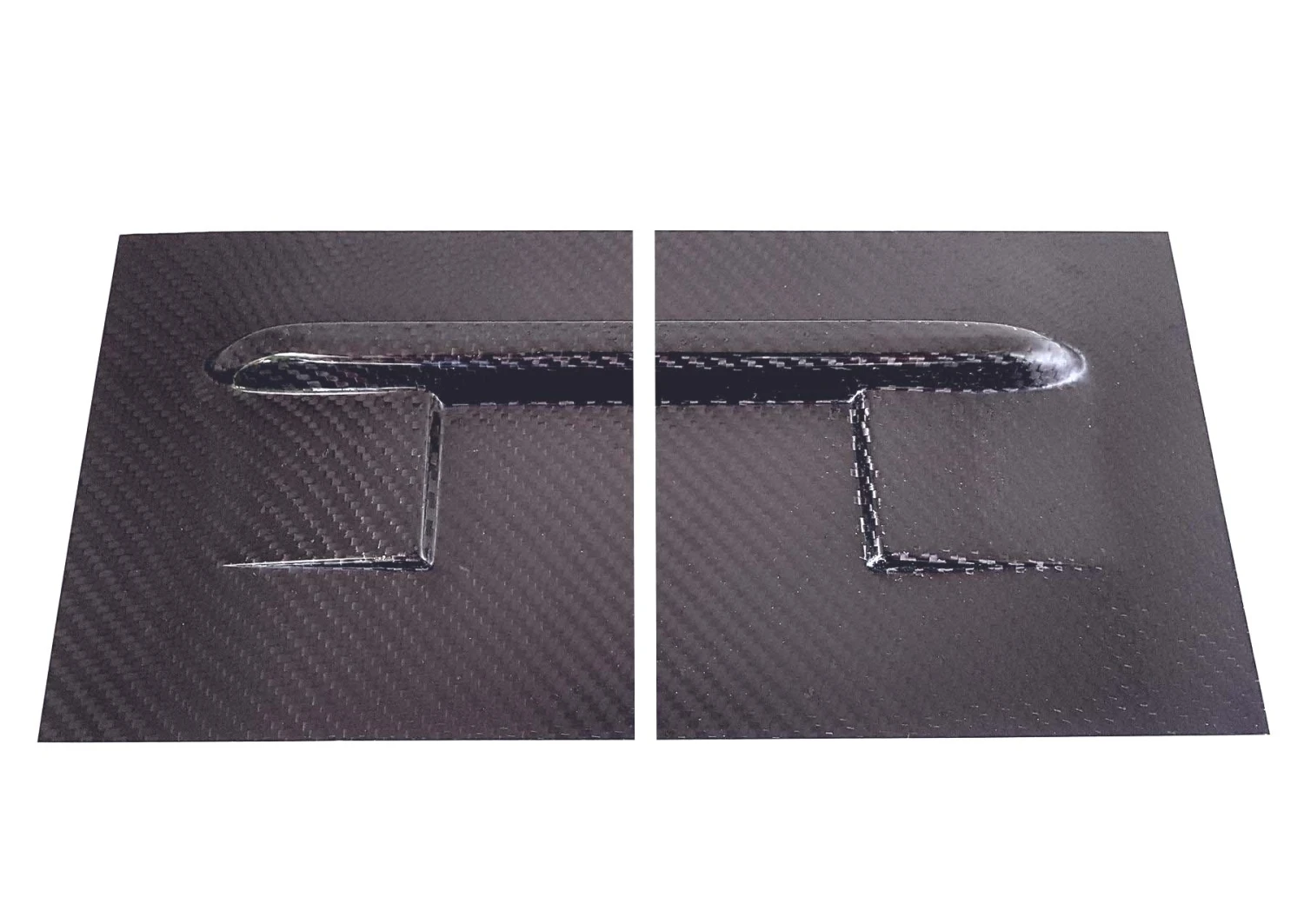

Supplied as one piece – cut in half to make a pair of covers.

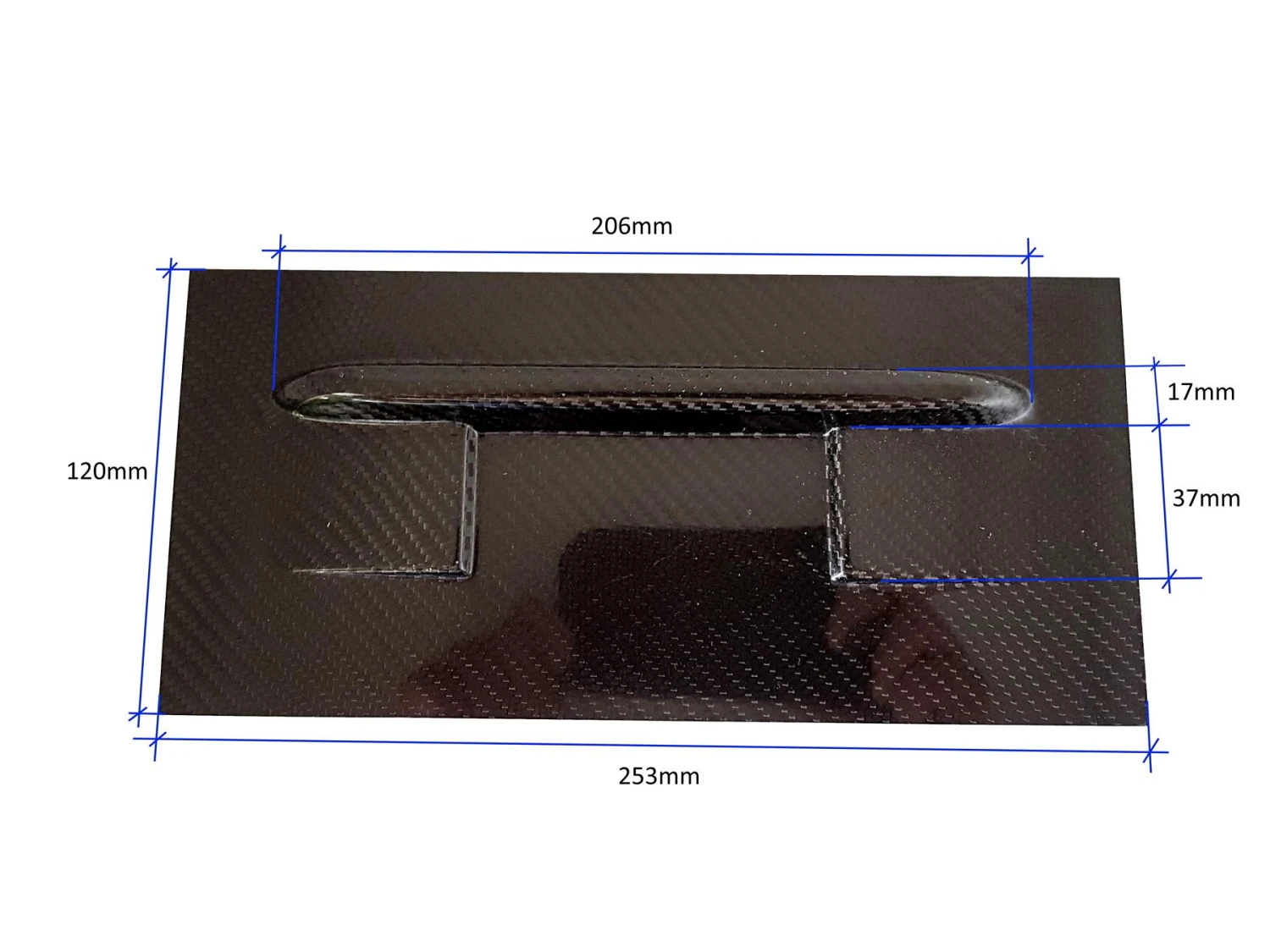

Largw Shrouded Carbon Servo Covers (with bulge) Specification
Thickness of carbon sheet	0.30 mm
Chordwise length	125 mm
Spanwise length	120 mm
Depth of servo bulge	4 mm
Distance of shroud from edge	30 mm
Thickness of shroud	15 mm
Height of shroud	13 mm
Weight	7.7 g

Trim to size to suit your application and attach with clear tape.
